VL810 - Super Speed USB 3.0 Hub Controller

EOL Products

Description



The VIA Lab’s VL810 from VIA Lab's is the industry's first fully integrated single chip solution that supports the higher transfer rates of the new USB 3.0 specification, allowing maximum data transfer rates of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices.

The VIA Lab’s VL810 enables four USB devices to be connected to a single downstream port on the host computer or another hub. Employing an advanced CMOS process, its integrated in-house USB PHY enables One upstream port and four downstream ports support not just Super-speed transfer, but are also backwards compatible with previous USB specifications and offer support for Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

Employing a well-planned pin-out and advanced manufacturing process, devices based on VL810 can enjoy easy layout and a low working temperature in the most compact device housing. Full sideband signal pins are available for showing power enable, over current, and LED status control. The SPI interface can support external EEPROM Flash for firmware upgrades or additional software enhancements.

The VIA Lab’s VL810-based hub devices enjoy full and comprehensive driver support on all modern operating systems including Windows 7. It is suitable for stand-alone USB hubs, desktop PC front panel hubs, on-board hubs, docking systems, and USB hub compound devices including mouse, keyboard, display and printer USB devices.

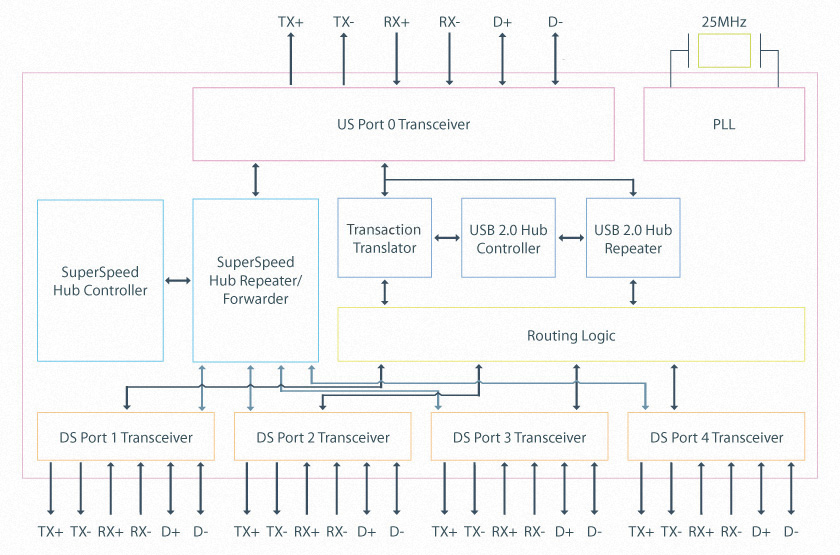

Block Diagram

Key Features

  • Compliant to USB 3.0 specification revision 1.0, and USB specification revision 2.0
  • Fully integrated single chip implementation
  • One up-stream supports Super-speed, high-speed and full-speed traffic
  • Four down-stream ports support Super-speed, high-speed and full-speed traffic
  • In-house USB PHY employs advanced CMOS process for low power consumption
  • Supports USB 3.0 low power states
  • Supports full sideband signal functions include gang mode and LED status lights
  • Full software support for Windows 7, Vista, XP, 2003, 2000, ME and Mac OS 10X and various Linux kernels

VIA Labs Firmware and Driver Downloads

NO.
File
Description
File (Size)
Download
01
Usb3HubFWUpgrade_Setup_V0.41_VL810_0960.zip
FW – Windows Utility that upgrades the firmware used by the VL810 Superspeed USB Hub Controller. (32-bit / 64-bit Compatible)
706.09 KB
Download
02
VL810 Firmware V9.6 Release Note.pdf
Change log for VL810 firmwares.
50.24 KB
Download
03
ENGLISH -USB3-Hub-FW-Upgrade-Tool.pdf
User Guide for Windows utility that upgrades the firmware used by the VL810 Super Speed USB Hub Controller.
272.44 KB
Download
04
Usb3HubFWUpgrade_Setup_V0.41_VL810_VL811_formal.zip
FW – Windows Utility that upgrades the firmware used by the VL810 Superspeed USB Hub Controller. (32-bit / 64-bit Compatible)
711.70 KB
Download
05
VL810-Firmware-V9.5-Release-Note.pdf
Change log for VL810 firmwares.
272.44 KB
Download
06
ENGLISH -USB3-Hub-FW-Upgrade-Tool.pdf
User Guide for Windows utility that upgrades the firmware used by the VL810 Super Speed USB Hub Controller.
272.44 KB
Download
