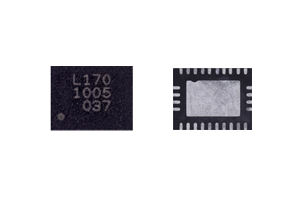

VL170 - 4x6 USB-C™ Alternate Mode MUX

Description




VL170 is 6x4 USB Type-C Alternate Mode MUX, using crossbar switch between 4 lanes DisplayPort source input and 2 lanes USB 3.1 host input to type-C connector, for Mux switch signal performance supports up to USB 3.1. VL170 integrated internal low drop regulator with 3.3V supply voltage, and using QFN-28 3.5x4.5mm Green package.




Block Diagram

Key Features

  • Compatible with USB3.1 and AM all 4Ch Video based on control pin VASEL, including 8.1 Gbps DisplayPort 1.3a
  • VCC = 3.3V ± 10% single power supply
  • Low power consumption with 0.5mA active and 4uW shutdown
  • High DC common mode voltage supporting to 2.2V
  • 28 pins QFN 3.5 x 4.5mm package
  • ESD > 4KV, CDM > 500V
  • MUX
    - Insertion loss: 2.7dB @ 5GHz typ.
    - Return loss: 6.5dB @ 5GHz typ.
    - Crosstalk Isolation: 40dB @ 5GHz typ.
    - Off Isolation: 25dB @ 5GHz typ.
