VL670 (U3TT) Evaluation Board

Part Number : VL670ES01
Firmware Version : SPI_99_0_0_10_20180330
Availability :
Pre-Order; lead time 5 working days
Shipping & Handling : Free
Quantity & Price :
Local Customers (TW)

Product Description

The VL670 is a unique High-speed USB2.0 to Super-speed USB3.0 transaction translator. VL670 effectively converts USB High-speed transactions to Super-speed transactions and vice-versa. With this capability, VL670 enables USB2.0 devices to work under a USB3.0 downstream port which only provides Super-speed interface (no USB2.0 capability under this USB3.0 downstream port for specific reasons). To provide best user experience, VL670 also provides bypass mode. When the upstream port of the VL670 is connected to an USB 2.0 downstream port, the USB 2.0 signals are bypassed from the upstream port to the downstream port directly, and vice-versa. When a Super-speed capable device is attached to the downstream port of the VL670, the Super-speed signals are bypassed from the upstream to the downstream port, and vice-versa.

VL670 employs a very powerful 32-bit RISC microprocessor which allows the VL670 to quickly convert transactions/protocols between USB2.0 and USB3.0 with minimal delay. VL670 works perfectly with a single power input from USB 5V bus to save customer BOM cost and is available on QFN 48L green package (6x6x0.85 mm).

Note

01/This evaluation board is intended for use by developers and industry affiliates.
02/ It does not ship with USB cable, work under bus-power mode.
03/ Not all USB2.0 devices are compatible. Compatibility issues may relate to device drivers, USB class drivers in USB 3.0, or client driver in xHCI. Not all USB device classes have been tested.

KGH.VL820 Evaluation Board

Part Number : VL820EVSET04
Firmware Version : FW 0213 (KGH version)
Availability :
Pre-Order; lead time 5 working days
Shipping & Handling : Free
Quantity & Price :
(with AC Adapter)
Local Customers (TW)

Product Description

VIA Lab’s VL820 is the world’s first and certified USB 3.1 Gen2 Hub Controller featuring highly-integrated, application specific design. VL820 features 1x upstream port and 4x downstream ports, all of which support 10Gbps USB 3.1 Gen 2 operation. The downstream ports can support any combination of SuperSpeed Plus (10Gbps), SuperSpeed (5Gbps), High Speed (480Mbps), Full Speed (12Mbps), and Low Speed (1.5Mbps) devices. VL820’s integrated USB 2.0 hub features Multiple Transaction Translators. VL820 based hubs enjoy broad cross-platform support under a variety of host controllers and SoCs, and OS support in Windows, OSX, Linux, and many others.

Package Contents:
1x VL820 Evaluation Board
1x 12V AC Adapter
1x A to MicroB Cable


Note

01/ This evaluation board is intended for use by developers and industry affiliates.
02/  VIA Labs recommends a 12V 3A power supply.
03/ Future Firmware Updates provided for VL820 Evaluation Boards are intended for use with the Evaluation Board only! For other USB 3.1 hubs designs, please contact the manufacturer.

VIA Labs Firmware and Driver Downloads

NO.
File
Description
File (Size)
Download
01
VLIHubFWUpdateVersion_Gen2_0213.zip
977.16 KB
Download

Detail Product Info

Download VL820 evaluation kit.pdf

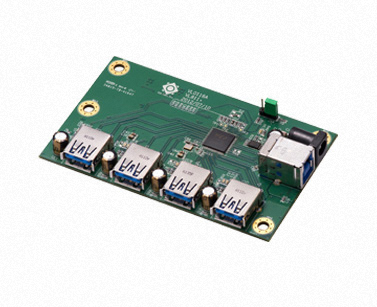

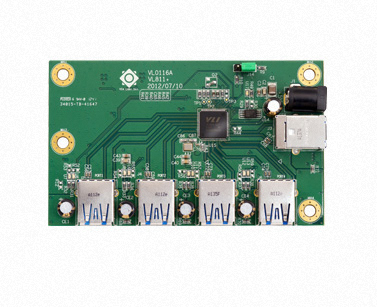

KGH ‧ VL811+ Evaluation Board

Part Number : VL811P02
Firmware Version : FW 0982 (KGH version)
Availability :
Pre-Order; lead time 10 working days
Shipping & Handling : Free
Quantity & Price :
(with AC Adapter)
Local Customers (TW)

Product Description

The VL811+ 4-port USB 3.0 hub controller is VIA Lab’s third-generation single-chip hub solution. VL811+ offers many improvements over previous generation designs with optimized low-power design, support for USB power management, and adds an integrated USB Charging Controller to the core hub logic. VL811+ is backwards compatible with USB 2.0 and USB 1.1 specifications, and fully supports SuperSpeed (5Gbps), Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic. VL811+ based hubs enjoy broad cross-platform support under a variety of host controllers and SoCs, and OS support in Windows, OSX, Linux, and many others.

Note

01/ It does not ship with USB Cable.
02/ This evaluation board is intended for use by developers and industry affiliates.
03/ VIA Labs recommends 5V 4A power supply.
04/ Future Firmware Updates provided for VL811+ Evaluation Boards are intended for use with the Evaluation Board only! For other USB 3.0 hubs designs, please contact the manufacturer.

VIA Labs Firmware and Driver Downloads

NO.
File
Description
File (Size)
Download
01
VL811+ KGH Release Note.pdf
383.16 KB
Download
02
VLIHubFWUpdateVersion_0922.zip
1.25 MB
Download
03
VLIHubFWUpdateVersion_0962.zip
1.08 MB
Download
04
VLIHubFWUpdateVersion_0982.zip
NEW Update
1.08 MB
Download

Detail Product Info

Download VL811+ evaluation kit.pdf

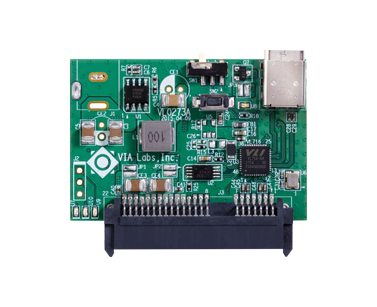

KGD.VL716 Evaluation Board

Part Number : VL716ESMP01
Firmware Version : FW 95_C0_41_B0 (KGD version)
Availability :
Pre-Order; lead time 10 working days
Shipping & Handling : Free
Quantity & Price :
Local Customers (TW)

Product Description

The VL716 is a single chip USB 3.1 Gen II to SATA 6Gb/s bridge controller with USB type-C connector support. Integrated in-house USB 3.1 Gen II PHY enables VL716 to run in USB SuperSpeed Gen II, Gen I, High-Speed, and Full-Speed modes. Supporting USB mass storage class Bulk-Only Transport (BOT), VL716 can work on Windows 10, Windows 8, Windows 7, Vista, XP, Mac OS X and various Linux kernels without additional driver. VL716 also support USB Attached SCSI Protocol (UASP) to enhance random read/write performance. Integrated in-house SATA 6Gb/s host controller can connect at SATA 6Gb/s, 3Gb/s, or 1.5Gb/s automatically. Built-in CC1/CC2 cable orientation detection circuits and two sets of SuperSpeed USB signal pins can support USB type-C receptacle natively to enable plug flipping feature without extra cost. 6 GPIO pins are available for push button, operation LEDs, device power down control, and other special usage. The SPI interface can support external flash for firmware upgrades or additional software enhancements.

Note

01/ This evaluation board is intended for use by developers and industry affiliates.
02/ Compliant to Universal Serial Bus 3.1 Specification Revision 1.0.
03/ Compliant to Universal Serial Bus 2.0 Specification.
04/ It does not ship with USB Cable, work under bus-power mode
05/ Firmware is Upgradable
06/ Works with Windows and iOS inbox driver, and various Linux kernels.

VIA Labs Firmware and Driver Downloads

NO.
File
Description
File (Size)
Download
01
VLISataFWUpdateVersion_95_C0_41_B0.zip
NEW Update
662.75 KB
Download

SuperMUTT Pack

Part Number : SuperMUTT Pack
Availability : In Stock
Shipping & Handling : Free
Quantity & Price :
Local Customers (TW)

Product Description

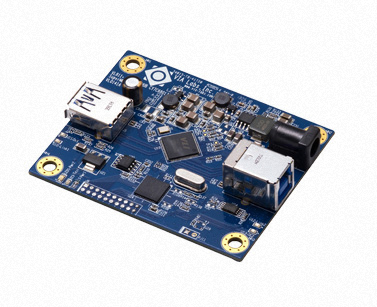

The SuperMUTT Pack is two devices in one. It is a VIA Labs VL811+ USB 3.0 hub with a Cypress FX2 USB 2.0 device downstream. The SuperMUTT Pack is capable of simulating USB 3.0 hub behaviors such as over-current, and exposes a USB 3.0 port that can be toggled on and off. The device is capable of simulating a variety of USB 2.0 device traffic including high speed and full speed transfers to bulk, isochronous, control, interrupt endpoints. The SuperMutt Pack device is designed to work with the MUTT Software Package. The Microsoft USB Test Tool (MUTT) software package contains test tools for hardware test engineers to test interoperability of their USB controller, hub, or device with the Microsoft USB driver stack in Windows 8.

Download the Latest MUTT Software Here:
http://msdn.microsoft.com/en-us/library/windows/hardware/jj590752

Package Contents:
1x SuperMuttPack Board
1x 12V AC Adapter
1x Set of 4 Rubber Feet
1x User Guide
1x A to B Cable

Detail Product Info

Download SuperMuttPack kit.pdf

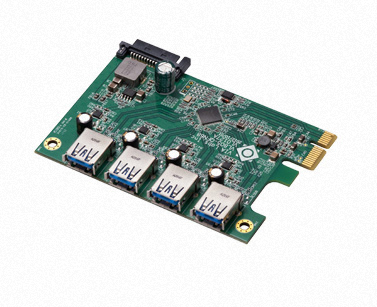

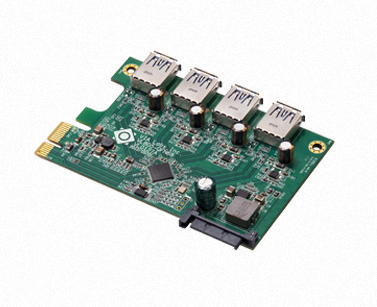

VL805 Evaluation Board

Part Number : VL805ESMP01
Availability :
Pre-Order; lead time 10 working days
Shipping & Handling : Free
Quantity & Price :
Local Customers (TW)

Product Description

VLI VL805 is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed (5 Gbps), High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) devices.

The VL805 USB 3.0 Controller is based on xHCI 1.0 and features 4 downstream ports and a x1 PCI Express 2.0 bus interface that is backwards compatible with PCI Express 1.0. VL805 supports USB Debugging port and is both USB-IF SuperSpeed Certified and Microsoft WHCK Compliant.

Note

01/ This evaluation board is intended for use by developers and industry affiliates
02/ Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
03/ Compliant to Universal Serial Bus 2.0 Specification
04/ Compliant to eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
05/ Compliant with PCI Express Base Specification 2.0.
06/ Firmware is Upgradable
07/ Initial Driver Support for Windows 7, Vista, and XP
08/ Supports for USB Attached SCSI Protocol (UASP)
09/ Supports various Linux kernels
10/ Supports Windows 10, Windows 8 inbox driver

VIA Labs Firmware and Driver Downloads

NO.
File
Description
File (Size)
Download
01
VIA_USB_3.0_Driver_Package Release Notes V4.40D.pdf
WHQL Driver for VL800/801 & 805/806 USB 3.0 Host Controller.
Compatible with Windows XP/Vista/7/8 32-bit and 64-bit.
51.92 KB
Download
02
VIA_XHCI_Driver_V4.40D_AP.zip
WHQL Driver for VL800/801 & 805/806 USB 3.0 Host Controller.
Compatible with Windows XP/Vista/7/8 32-bit and 64-bit.
66.60 MB
Download
03
VIA USB 3.0 Driver Package Release Notes V4.70C.pdf
WHQL Driver for VL800/801 & 805/806 USB 3.0 Host Controller.
Compatible with Windows 7/8/8.1 32-bit and 64-bit.
40.34 KB
Download
04
VIA_XHCI_Driver_V4.70C_AP.zip
WHQL Driver for VL800/801 & 805/806 USB 3.0 Host Controller.
Compatible with Windows 7/8/8.1 32-bit and 64-bit.
63.41 MB
Download
05
VIA USB 3.0 Driver Package Release Notes V5.60B.pdf
VIA USB 3.0 Driver Package Release Notes V5.60B
214.86 KB
Download
06
VIA_XHCI_Driver_V5.60B_AP.zip
VIA_XHCI_Driver_V5.60B_AP
63.42 MB
Download
