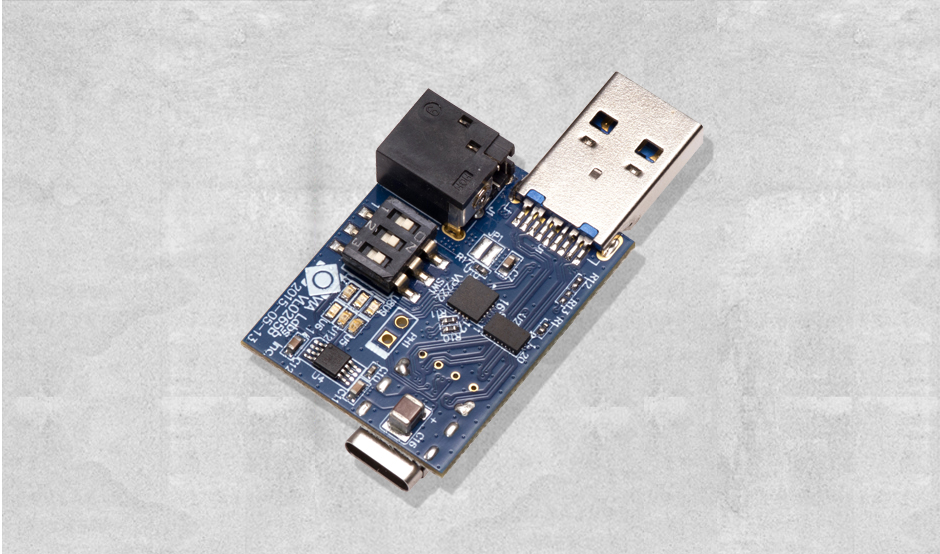

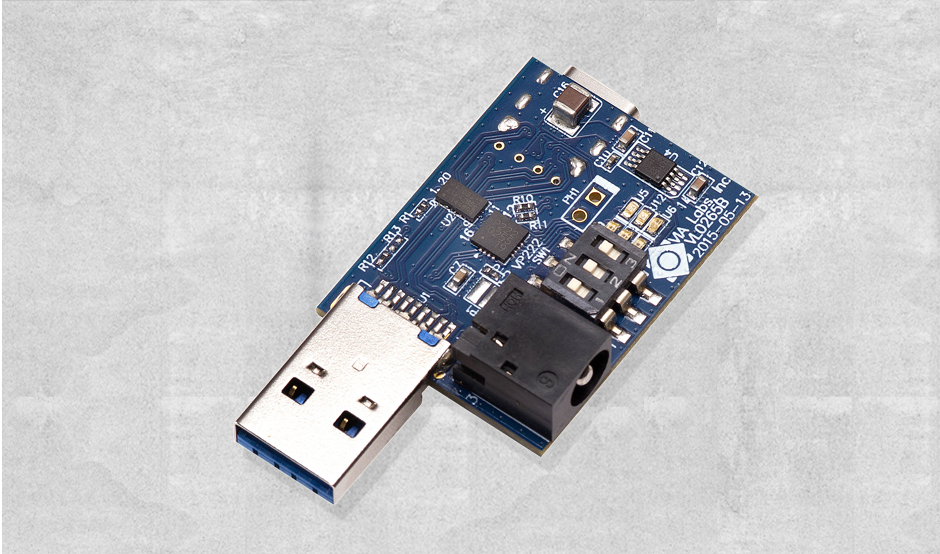

Description

The VIA Lab’s VP222 is an USB Type-C DFP CC controller which supports universal battery charging with an integrated USB 2.0 high-speed data switch. The VP222 provides the electrical measurement to support Type-C CC controller features. The VP222 also provides the backward compatibility with the electrical protocol handshake on D+/D- to support the battery charging schemes; BC 1.2, Chinese Telecommunication Standard YD/T 1591-2009, Divider Mode (complaint with Apple® devices), and DCP 1.2V Mode (compliant with Samsung devices). The VIA Lab’s VP222 supports low/full speed HID (human interface device like mouse/keyboard) wake function. The wide bandwidth (1.2GHz) data switch features low capacitance and low on resistance, allowing signals to pass with minimum edge and phase distortion.

Block Diagram

Key Features

• Compliant with USB Type-C Specification R1.1
• Detect the attachment and detachment of Type-C port
• Provide Type-C cable orientation identification
• Provide the selection of VBUS power capability setting
• Provide the control signal for VBUS
• Provide VCONN application with maximum 1.5W
• Integrate VCONN MOSFET power switch
• Support Audio Accessory and Debug Accessory Identification
• Supports Sleep-mode charging for most available Apple devices, BC 1.2 compliant devices and Samsung Devices

• Meets Chinese Telecommunication Industrial Standard YD/T 1591-2009
• Meets Battery Charging Specification BC 1.2 for DCP and CDP
• Automatic SDP/CDP switching for devices
• Automatic selection of D+/D- mode for an attached device
• 1.2-GHz bandwidth USB 2.0 high speed data switch
• Thermal and Short-Circuit protection for VCONN
• Under-Voltage Lock Out protection
• Supports USB Low/Full speed devices wake up
