VP223.VP224 - USB-C DFP CC Controller with Universal Charging

EOL Products

Description



The VIA Lab's VP223 / VP224 is an USB Type-C DFP CC controller which supports universal battery charging. The VP223 / VP224 provides the electrical measurement to support USB Type-C CC controller features, and also provides the backward compatibility with the electrical protocol handshake on D+/D- to support the battery charging schemes; BC 1.2, Chinese Telecommunication Standard YD/T 1591-2009, Divider mode (complaint with Apple® devices), and DCP 1.2V Mode (compliant with Samsung devices).

The VIA Lab's VP223 / VP224 provides two power capability setting for 1.5A and 3A at default VBUS 5V. The PMODE pin is used to configure the Power capability setting. The chip integrates an auto-detect feature that supports 3 DCP schemes for USB2.0 Battery Charging Specification (BC 1.2), the Divider mode and DCP 1.2V mode without the need from outside user interaction.

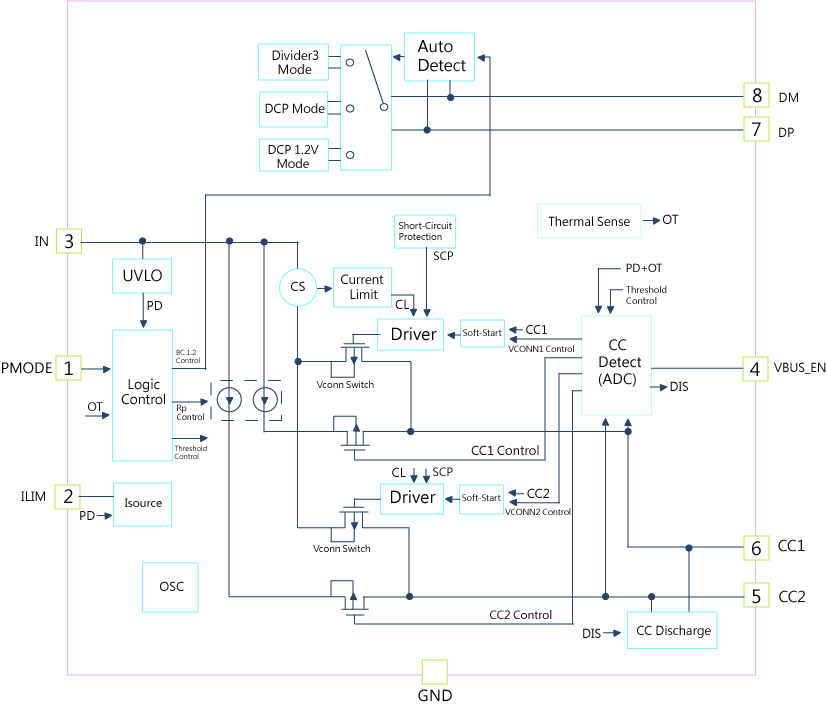

Block Diagram

Key Features

  • Compliant with USB Type-C Specification R1.1
  • Detect the attachment and detachment of USB Type-C port
  • Provide the selection of VBUS power capability setting
  • Provide the control signal for VBUS
  • Provide VCONN application with maximum 1.5W
  • Integrate 0.23Ω VCONN MOSFET power switch with over current protection
  • Auto CC1/CC2 discharge for active cable when device detach
  • Automatic selection of D+/D- mode for an attached device
  • Meets Chinese Telecommunication Industrial Standard YD/T 1591-2009
  • Meets Battery Charging Specification BC 1.2 for DCP and CDP
  • Support Divider 3 Mode
  • Support DCP 1.2V Mode
  • Thermal and Short-Circuit protection for VCONN
  • Under-Voltage Lock Out protection

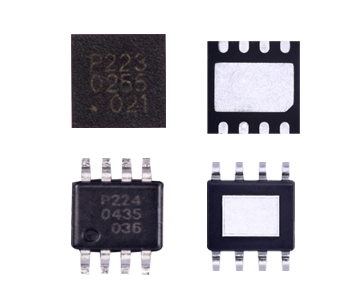

  • Available in 8 pins DFN(VP223)/EMSOP(VP224) package
